How to assemble Delta X Kit

Technical data

Accuracy	0.5mm
Working space diameter at 320 – 470 mm	340mm
Max payload	500g
Mass	3.5Kg
Max track speed	0.7 m/s
Max acceleration	2 m/s
Power	12V/5A

Dimensions

Assembly

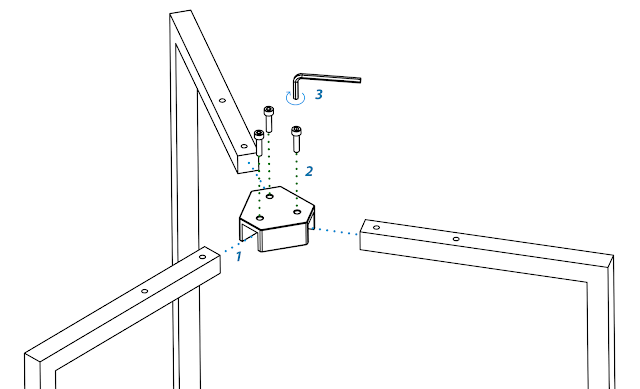

Make tripod

Assemble tripod and robot body

Assemble carrier arm with shaft

Mounting pneumatic module (4-axis and suction cup)

Mounting flexible gripper
